Race Spec® Exclusive Rennsteig Sumitomo HX 090II Die Set

RACE SPEC® EXCLUSIVE

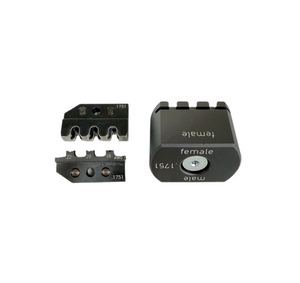

Rennsteig Sumitomo HX 090II Die Set
Part Number  RS.REN-SUMI HX090II Die Set

• Compatible with the PEW12 Crimp Tool
• Cable Type: Spec 55, M22759/32, M22759/16

• Accommodates 20-22AWG and 18AWG Sumitomo HX 090 II Terminals (male and female)
• 'Small' Terminal Cable Range 20-22AWG
  • Internal PN HX.C Female
    22AWG - 22.7 lbf Tensile Strength
    20AWG - 32.7 lbf Tensile Strength
• 'Large' Terminal Cable Range 18AWG
  • Internal PN HX.C-18 Female
    18AWG - 44.3 lbf Tensile Strength
• Accepts the above terminals only. Using other terminal PNs or wire sizes is not recommended.
• Dual machines locator accepts both female and male terminals.
• Terminals are found on applications common to Honda, Toyota, etc.
• Die set ONLY

Our third exclusive die set manufactured by Rennsteig, designed specifically for the Sumitomo HX 090 II female/male termainals using Spec 55, M22759/32 ,or comparable wire. You can expect the same attention to detail, quality, and perfect output as seen with our first collaborative effort with Rennsteig.

12/26 UPDATE

We have limited quantity in-bound that is scheduled to arrive 1/2/25. You may place your order below and we will ship complete once the shipment arrives.
