Gen 2 Spray Plates with provisions for methanol and nitrous injection are now available!
* 68-70mm fits all throttle bodies up to 70mm!
** 74-76mm fits all throttle bodies from 74 through 76mm!

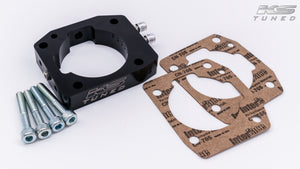

All New KS Tuned 68mm-70mm and 74mm-76mm Gen 2 Spray Plates:
We've redesigned the KS Tuned Spray plates to be slightly smaller and fit the contours of most intake and throttle setups more precisely! DBHFJ Gen 2 Spray Plates now feature provisions for single or dual nozzle methanol injection. No need for ugly fittings tapped in to your intercooler charge tubes, the Gen 2 Spray Plate allows methanol nozzles to be mounted cleanly out of sight. All plates will include plugs to seal the nozzle mounting holes if they are not used and methanol attachment kits are sold separately.
The KS tuned 68mm/74mm spray throttle body plate fits the standard bolt pattern found on 88-00 Hondas and Acuras including the DBHFJ-series engines. 74mm is the largest size commonly found on aftermarket throttle bodies that still retain the IAC valve. Both plates include two stainless steel fittings that accept standard nitrous jets and will allow for a dual stage dry shot or single stage wet shot. Each fitting leads to no less than five injection ports inside the bore of the plate and each shot can be as large as you can find a jet for. *We tested for up to 200 HP per fitting.
*We tested for up to 200 HP per fitting.
* NOTE: Our 68mm Plate is REQUIRED if you are using a stock intake manifold due to the IACV location.
Vehicle Fitment Applications
F-series (Accord and S2000)
Spray Plate Nitrous/Fuel Jet Size Chart
*Jet size is dependent on both fuel pressure and bottle pressure.
