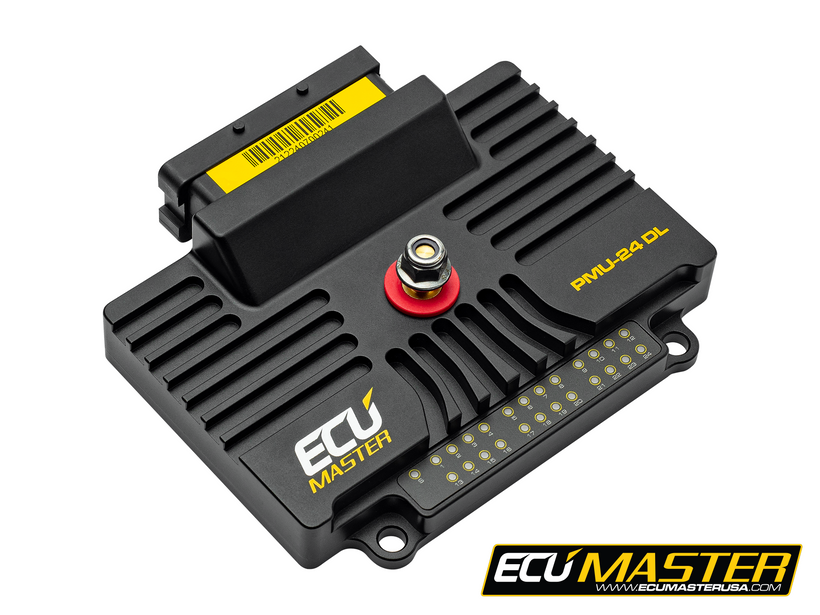

ECUMASTER PMU24-DL Power Management Unit

The PMU-24 DL is a new and enhanced Power Management Unit featuring all of the amazing functionality of the PMU-16, now with 24 high-side outputs and internal data logging memory as standard. Through clever engineering, 8 of the analog inputs may be utilized as 7 amp high side outputs. As standard with the PMU-16 series, all output states, voltage, and current information are able to be transmitted via CAN bus to a dash display to inform the driver of potential problems. In addition, all internally logged data can be downloaded from the device for later analysis.

Key Features:

• 170 Amp continuous current capacity.
• Operating voltage: 6-22V (immunity to transients according to ISO 7637)
• Temperature range: AECQ-100 GRADE 1, -40 to +125°C.
• 10x 25 Amp high-side power outputs (PWM capable).
• 6x 15 Amp high-side power outputs.
• 8x 7 Amp high-side power outputs.
• Up to 16 analog inputs.
• 24x tricolor LED for each power output state.
• 2x CAN 2.0 A/B.256 MB data logger memory.
• Up to 500 Hz logging frequency.
• Real-time clock for data stamping.
• 3D accelerometer/gyroscope.
• Built-in “inertia switch” in case of an accident.
• Easy access to CAN-bus data (imports and exports).
• Internal data processing using logical functions, numbers, timers, and tables.
• Custom PID controllers.
• Fully customizable ”logic” for each output.
• Flexible and intuitive client software.
