Souriau 8STA602-05PC

Souriau 8STA602-05PC

• Connector Type   Plug
• Shell   Size 2
• Contact Arrangement   (5) Size 26 contacts
• Contact Type    Pin
• Keyway Color   Orange
• Mating Connector
  8STA002-05SC
  8STA102-05SC
• Straight Shrink Boot
  203W301-25-G02 or 1037-4-G
• 90-Degree Shrink Boot
  223W601-25 or 1182-4-G
• Tooling
  DMC AFM8 with 640088
• Accessories
  • Protective Cap
• INCLUDES required contacts


NOTE

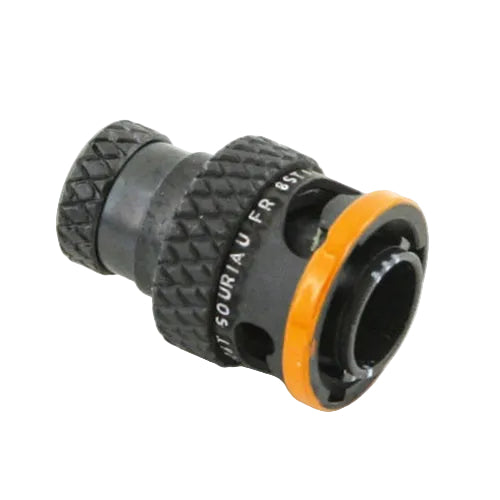

As we continue to update for an entire new range of product while integrating a new layout to assist in your experience, some photos will not be specific to the connector listed.

Please carefully review the CONTACT ARRANGEMENT and CONTACT TYPE details to ensure you are purchasing the desired component and verify against the second photo showing the planform (layout).
