Race Spec® Exclusive Rennsteig AMP Superseal 1.0 Die Set

43 items left

Race Spec® Exclusive

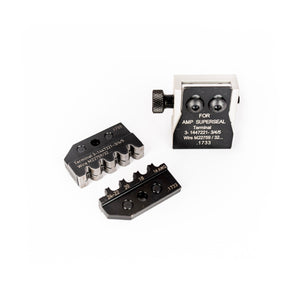

Rennsteig AMP Superseal 1.0 Die Set
Part Number  RS.REN-SS1.0 DIE SET

  • Compatible with the PEW12 Crimp Tool
  • Cable Type: M22759/32, M22759/16
  • Cable Range 16AWG, 18AWG, 20AWG, 22-24AWG
  • Cable Insulation Range .070", .062" .052",  .045"-.039"
  • Suits AMP Superseal 1.0 Female Terminals
  • Die set ONLY

Termination Details for M22759/32 Wire

Please refer to our Die Set Guide which can be found here.

  • 22-24AWG must use the 'small' Superseal 1.0 Terminal, suffix -5
  • 20AWG must use the 'standard' Superseal 1.0 Terminal, suffix -4
  • 16-18AWG must use the 'large' Superseal 1.0 Terminal, suffix -3

While Rennsteig has a shelf part for the AMP Superseal 1.0 terminal available, it is only suited for 16-20AWG and the insulation support nest was originally designed to be used with automotive grade wire's thicker jacket resulting in a less than ideal finished termination.

As an Authorized Rennsteig Distributor with a direct line of communication to their headquarters in Germany we we have worked together to bring a new die set to market exclusive to Race Spec that was designed specifically for M22759/32 wire. The die set is compatible with all three size Superseal 1.0 contacts and has a nest for 16AWG, 18AWG, 20AWG, and 22-24AWG.


    ×
