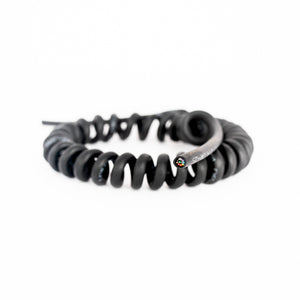

Race Spec 10-Conductor Curly Cord

11 items left

Finally, a curly cord intended for motorsport. With a twisted pair core for CAN, we had this 10-conductor cable custom manufactured to our specification and it is the perfect solution for most steering wheel applications.

  • Base Overall Length:  22"
  • Expanded Overall Length:  50"
  • Spiral Width:  .750"
  • Cable Details
    • Spec 55 24AWG Wire
    • Core: Twisted Pair (Green, White)
    • Lay 1: (8) Conductors (Black, Brown, Red, Orange, Yellow, Blue, Violet, Gray), (1) .90mm SZF Filler
    • DR-25 1/4" Jacket

Custom lengths available upon request, please contact us for more information.
