If there is a note listing 'x items available' this indicates we have stock on hand. If this is not present, we will place the order with MoTeC and advise of your lead time. Most hardware is currently able to ship in 1-2 days after receipt of your order.

Please select your display size from the drop-down menu.

The C12x is a new model in MoTeC's range of Displays and Display Loggers, featuring an impressively generous, high resolution, full colour screen. Stylishly designed with powerful functionality, the C12x provides a sophisticated display plus data logging, auxiliary control and programmable LEDs all in one streamlined device.

C125
Measuring 125 mm (approx. 5 inches), the ultra bright screen is vibrant and anti-reflective, making it easy to view in direct sunlight. Numerous selectable layouts are supplied with configurable channels, labels and colour schemes. Or, for the flexibility to treat your screen as a blank canvas and design your own layout with unique graphics, sponsor logos, custom icons and gauges, opt for the new Display Creator upgrade.

The C125 also features ten full colour LEDs integrated into the unit for use as shift lights, warning lights or other driver alerts. The colour, function and intensity of each LED is programmable, allowing users to develop their own unique strategies and sequences.

Dimensions 134.5 x 101.8 x 19.4 mm excluding connector
Weight 342 g
1 x 34 pin waterproof connector
1 x Mini USB port
Housing: IP67 rated
Diffused LEDs

C127
Measuring 176 mm (approx. 7 inches), the ultra bright screen is vibrant and anti-reflective, making it easy to view in direct sunlight. Numerous selectable layouts are supplied with configurable channels, labels and colour schemes. Or, for the flexibility to treat your screen as a blank canvas and design your own layout with unique graphics, sponsor logos, custom icons and gauges, opt for the new Display Creator upgrade.

The C127 features a total of 16 full colour LEDs integrated into the unit for use as shift lights, warning lights or other driver alerts. The colour, function and intensity of each LED is programmable, allowing users to develop their own unique strategies and sequences.

Dimensions 196.2 x 122.5 x 24.9 mm excluding connector
Weight 615 g
1 x 34 pin waterproof connector
1 x mini USB port

C1212
Measuring 311 mm (approx. 12 inches), the ultra bright screen is vibrant and anti-reflective, making it easy to view in direct sunlight. Numerous selectable layouts are supplied with configurable channels, labels and colour schemes. Or, for the flexibility to treat your screen as a blank canvas and design your own layout with unique graphics, sponsor logos, custom icons and gauges, opt for the new Display Creator upgrade.

The C127 features zero LEDs and would require a MoTeC SLM for external LED control.

Dimensions 340.8 x 147.6 x 34 mm excluding connector
Weight 1.690 kg
1 x 34 pin waterproof connector
1 x mini USB port

The C12x are available standalone or as part of MoTeC's C12x Race Kits.

Specifications

Display

Screen: Color TFT LCD, anti-reflective
Resolution: 800 x 480, anti-aliased graphics
Selectable fixed layouts with channel and label configurability
48 user-defined, scrollable message lines with programmable overrides
3 programmable 'pages', for example Practice, Warm-Up, Race

Communications

2 x Configurable CAN buses with individually programmable CAN bus speeds
- One can be used as RS232 Receive
RS232: 2 x RS232 ports
One with Transmit and Receive
One with Receive only

Physical

Dimensions 196.2 x 122.5 x 24.9 mm excluding connector
Weight 615 g
1 x 34 pin waterproof connector

Logging (optional - requires Logging Upgrade)

120 MB logging memory
Logging rates up to 500 samples per second
Fast Ethernet download
Includes i2 Standard data analysis software (i2 Pro available as an upgrade)

Inputs (optional - requires I/O Upgrade)

6 x analogue voltage inputs
2 x analogue temperature inputs
2 x digital inputs
3 x speed inputs

Outputs (optional - requires I/O Upgrade)

4 x low side outputs
- PWM or switched operation

Internal Sensors

3-axis G sensor
Dash temperature sensor
Sensor supply voltage
Battery voltage

Expanders

Compatible with MoTeC E888 and E816 Expanders, providing full functionality.

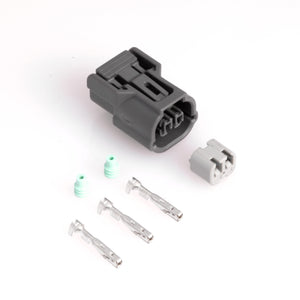

Honda 2-Position Connector Kit, Gray
