DMC HD51 Hydraulic Crimp Tool

1 IN STOCK

DMC HD51 Hydraulic Crimp Tool

Part Number HD51, M52059/5-01 QPL Status Pending
Crimp Range 8-2/0 AWG

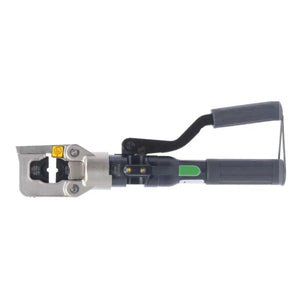

The HD51 hydraulic crimp tool is intended to crimp terminals onto copper and aluminum cables with DMC’s HD51 die sets.

This small hand-held tool provides 6 tons of crimp force and accepts 8 through 2/0 AWG conductors in many terminal applications. It also  features an automatic relief valve to prevent over-compression.

The HD51 hydraulic crimper features rugged construction and comfortable handle grips for the best ergonomic advantage. The number of handle closures required to complete the crimp is reduced by the larger and more efficient hydraulic pump system.

• L x W x H: 14 x 2 x 5 (in) 356 x 50.8 x 127 (mm)
• Weight: 4.6 pounds (2.08 kg)
• Release lever for relaxing crimp pressure and opening dies
• 180º rotating head for ease in confined work areas.

Die sets are not included.
-Please contact us for die set options.

×
