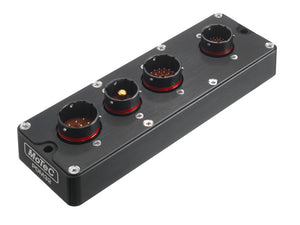

MoTeC PDM32

If you'd like to order this product, please provide your e-mail address and someone will be in touch with you shortly.



MoTeCs new 32 output Power Distribution Module (PDM32) is designed to provide electronically switched power to the various electrical systems in the vehicle such as motors, lights and solenoids, and electronic devices such as ECUs and data acquisition systems.

The module replaces conventional relays, fuses and circuit breakers, simplifying wiring and reducing weight while increasing reliability.

Basic Specifications

Outputs

  • 8 x 20A continuous, 115 A transient (typical)
  • 24 x 8A continuous, 60 A transient (typical)

Inputs

  • 23 x Switch inputs

Communications

  • 1 x CAN

Diagnostic Information

  • Output current and voltages
  • Input voltages
  • Error status

Physical Information

  • Connectors
    • 1 x 37 pin Autosport connector
    • 1 x 26 pin Autosport connector
    • 1 x 1 pin Autosport connector
    • 1 x 8 pin Autosport connector
  • Case size 180 x 60 x 28 mm
  • Weight 405g

OPEN BOX - SMALL BLEMISH

    ×
