The C18x is a new model in MoTeC's range of Displays and Display Loggers, featuring an impressively generous, high resolution, full color screen. Stylishly designed with powerful functionality, the C18x provides a sophisticated display plus data logging, auxiliary control and programmable LEDs all in one streamlined device.

The C18x products are MoTeC's latest professional level Display Logger featuring an impressively generous, full color screen. It comes standard with 250 MB internal logging memory (can be upgraded to 500 MB) and MoTeC's world-renowned i2 data analysis software. A Pro option is available for expert analysis.

C185
Measuring 125 mm (approx. 5 inches), the ultra bright screen is vibrant and anti-reflective, making it easy to view in direct sunlight. Numerous selectable layouts are supplied with configurable channels, labels and color schemes. Or, for the flexibility to treat your screen as a blank canvas and design your own layout with unique graphics, sponsor logos, custom icons and gauges, opt for the new Display Creator upgrade.

The C185 also features ten full color LEDs integrated into the unit for use as shift lights, warning lights or other driver alerts. The color, function and intensity of each LED is programmable, allowing users to develop their own unique strategies and sequences.

Dimensions 134.5 x 101.8 x 19.4 mm excluding connector
Weight 342 g
79-way Autosport
1 x Mini USB port
Housing: IP68 rated
Diffused LEDs

C187
Measuring 176 mm (approx. 7 inches), the ultra bright screen is vibrant and anti-reflective, making it easy to view in direct sunlight. Numerous selectable layouts are supplied with configurable channels, labels and color schemes. Or, for the flexibility to treat your screen as a blank canvas and design your own layout with unique graphics, sponsor logos, custom icons and gauges, opt for the new Display Creator upgrade.

The C187 features a total of 16 full color LEDs integrated into the unit for use as shift lights, warning lights or other driver alerts. The color, function and intensity of each LED is programmable, allowing users to develop their own unique strategies and sequences.

Dimensions 196.2 x 122.5 x 24.9 mm excluding connector
Weight 615 g
79-way Autosport
1 x mini USB port
Housing: IP68 rated
Diffused LEDs

C1812
Measuring 311 mm (approx. 12 inches), the ultra bright screen is vibrant and anti-reflective, making it easy to view in direct sunlight. Numerous selectable layouts are supplied with configurable channels, labels and color schemes. Or, for the flexibility to treat your screen as a blank canvas and design your own layout with unique graphics, sponsor logos, custom icons and gauges, opt for the new Display Creator upgrade.

The C1812 features zero LEDs and would require a MoTeC SLM for external LED control.

Dimensions 340.8 x 147.6 x 34 mm excluding connector
Weight 1.690 kg
79-way Autosport
1 x mini USB port
Housing: IP68 rated

Specifications

Display

NEW: For full customization of the display layout and graphics add the new display creator option.

Screen: Color TFT LCD, anti-reflective
Resolution: 800 x 480, anti-aliased graphics
Selectable fixed layouts with channel and label configurability
48 user-defined, scrollable message lines with programmable overrides
3 programmable 'pages', for example Practice, Warm-Up, Race

Logging

250 MB logging memory (500 MB optional)
Logging rates up to 1000 samples per second
Fast Ethernet download
Includes i2 Standard data analysis software (i2 Pro available as an upgrade)

Communications

4 x configurable CAN buses with individually programmable CAN bus speeds
- One can be used as RS232 Receive
- Two CAN buses support VIM/SVIM Expanders
2 x dedicated RS232 ports

Physical

Dimensions 196.2 x 122.5 x 24.9 mm excluding connector
Weight 670 g
1 x 79 pin Autosport connector

Inputs

10 x analogue voltage inputs (20 with I/O Upgrade)
4 x analogue temperature inputs (8 with I/O upgrade)
4 x digital inputs
2 x switch inputs
4 x speed inputs

Outputs

6 x low side outputs
- PWM or switched operation

Internal Sensors

3-axis G sensor
Dash temperature sensor
Sensor supply voltage
Battery voltage

Expanders

Compatible with MoTeC E888 and E816 Expanders, providing full functionality
Compatible with VIM/SVIM Expanders

MoTeC MX00/E8XX Mount Set

Related Items

Make An Offer

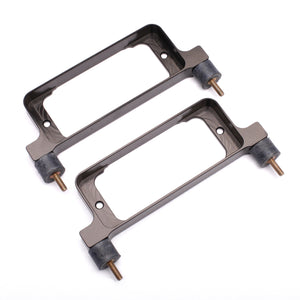

MoTeC MX00/E8XX Mount Set
