MoTeC Hall Effect Sensor

4 items left

MoTeC offers two standardhall effect speed sensors to be used for speed measurementalong with a magnetic trigger sensor, please select the appropriatespeed measurement sensor for your application from the drop -down list

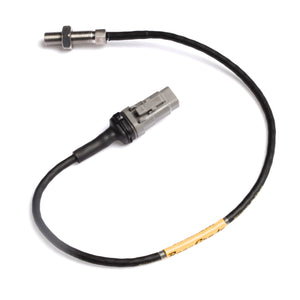

HS230

3/8-24"Hall Effect Speed Sensor

Features

  • Input Voltage: +4.5 TO 24 VDC
  • Output: Open Collector NPN with internal 4.7KΩ Pull-Up
  • Frequency Range: 0-12 kHz
  • Airgap: 0.030" - 0.060"
  • Operating Temperature: -20° to 140°C
  • Vibration: 15G, 10-2000 Hz
  • Internal reverse polarity protection
  • DTM4S Termination

DHALL 437

7/16-20" DifferentialHall Effect Speed Sensor

Features

  • Input Voltage: +5 TO 24 VDC
  • Airgap: 0.040" - 0.050"
  • Speed Range: 0-15 kHz
  • Output Voltage: 400mv to Vin
  • Operating Temperature: -40° to 150°C
  • DTM4S Termination

MHALL 437

7/16-20" MagneticHall Effect Speed Sensor

Features

  • Triggered on the south pole of a magnet (ferrous metal will not work)
  • Input Voltage: +4.5 TO 24 VDC
  • Output: Open Collector NPN with internal 4.7KΩ Pull-Up
  • Frequency Range: 0-15 kHz
  • Airgap: 0.030" - 0.060"
  • Operating Temperature: -20° to 140°C
  • DTM4S Termination



    Mating connectors sold separately.



      ×
