Sensors - RaceGrade 6-Axis IMU

RaceGrade 6-Axis IMU

$ 549.00

1 IN STOCK

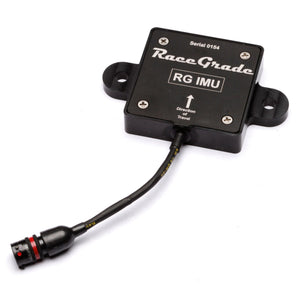

RaceGrade 6-Axis IMU

The RaceGrade IMU contains a three axis accelerometer and a three axis angular rate sensor designed to measure and communicate all values over the CAN bus.

Specifications:

  • Acceleration Range: +/- 4G
  • Angular Rate Range: +/- 250 deg/s
  • Supply Voltage: 9 - 36 VDC
  • Supply Current: 30 mA
  • Termperature Range: -20C to +85C
  • Dimensions: 3.625 x 2.25 x 0.5 in
  • Weight: 20 grams w/o connector
  • Mating Connector: ASL606-05SN
